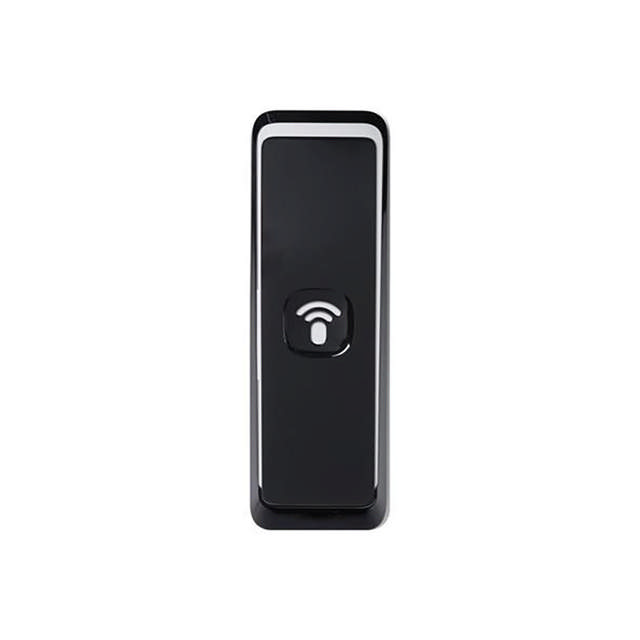

Cidron Slim - Mifare/Desfire - No keypad - Black

• 13.56 Mhz Mifare - Desfire
• Indoor and outdoor (with cover)
• Reading distance: up to 10 cm.
• Tricolor LED
• Color: matte black

NOTE!

Available in either Wiegand or OSDP format (Please write which type in the comments field when ordering)

NOTE!!

For OSDP format, the default configuration is in-read. If you need to use out-read functionality, please write this in the comments field when ordering.

Features

• Supports 13.56MHz technologies
• Can be used for NOX, Axiom and other ADK systems
• Fully NFC compliant with ISO 18092
• Adaptable design
• SAM input (Secure Access Module - for SAM SIM cards)
• Multiple communication interfaces
• Built-in heater
• Tamper alarm
• For indoor and outdoor use (with protective cover)

Specifications

• Operating frequency: 13.56MHz, 125kHz
• NFC standard ISO 18092: NFC peer to peer and card emulation
• RFID standard ISO 14443A/B: Type B cards (SRI 512/2K/4K/x4K) Mifare, Mifare Plus, DESFire EV1
• Reader technologies: Mifare CSN, Classic, Plus, DESFire CNS, 0.6, EV1
• RFID supported cards: 4&7Byte, Ultralight, Ultralight C, Mifare 1k - 4k, Mifare Plus, DESFire EV1 2k - 8k, depending on card technology, and other ISO 14443A/B compatible cards.
• Power supply: 9 - 30VDC
• Current consumption: 30 mA @ 24 VDC. peak 101 mA, peak with heat on 390 mA, 42 mA @ 12VDC, peak 195 mA, peak with heat on 456 mA
• Communication interfaces: Wiegand 24-66, RS485, RS232, Clock/Data
• Communication protocols: Wiegand 24-66, ABA 1 & 2, OSDP 1, OSDP 2
• Reading output format: Wiegand 24-66
• Indicators: Tri-color LED light; green, red and yellow, single-color backlit keyboard, Buzzer with 4 different sounds, four-wire control
• I/O: 4 inputs, 2 GPIO
• Reading distance: 30-100 mm. depending on antenna and transponder
• SAM module: SIM card
• Heating element: Built-in
• Write distance: 30-70 mm, depending on card technology
• Tamper alarm: Built-in to protect against breaking and dismantling, internal and external
• Operating temperature: -40°C - +60°C
• Operating humidity: 0 - 95% relative humidity without condensation
• Protection class: IP65 electric epoxy potted
• Dimensions (LxHxW): 141 x 25 x 48 mm
• Configuration: Setup card and PC software
