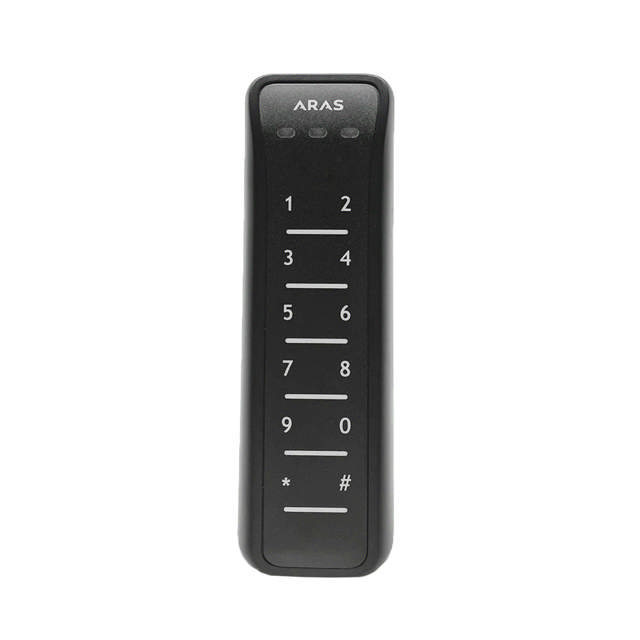

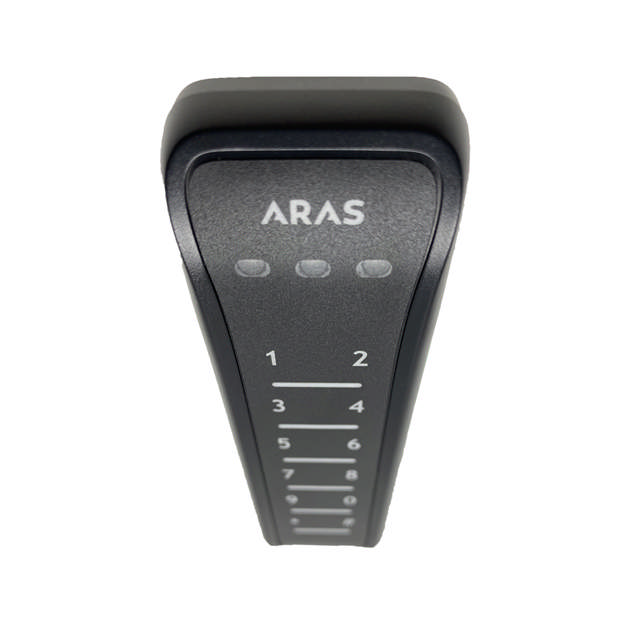

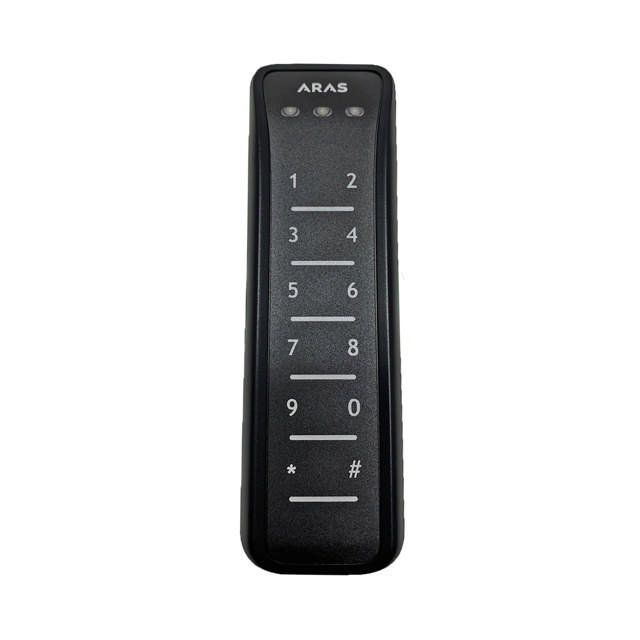

Idesco Slim PIN - Mifare UID - OSDPv2 - 3m cable

AC7SLIM-PIN-3M-OSDP

Mifare card reader with keypad - Indoor and outdoor

  • 13.56 Mhz Mifare
  • Backlit keyboard
  • Indoor and outdoor
  • Reading distance: up to 5 cm.
  • Constructed of plastic
  • 3 LED bulbs
  • Color: Black
  • Dimensions: 141 x 43 x 19 mm.
  • This reader can handle 7 different UID standards, and also reads NFC UID.
  • Integrated tamper switch (tamper)
  • Low power consumption - up to 60% more energy efficient compared to other readers
  • IP67 with Pigtail cable solution
  • IP54 with Connector solution
  • For larger orders, the reader and keyboard can be delivered in other colors
  • For larger orders, it is possible to have your own logo applied
  • Cable length of 300 cm.

NOTE.
OSDP card readers are available in 2 versions. A standard configuration for standard in-reader, and a version configured for out-reader functionality. If you need to use the out-reader function, please write this in the comments field when ordering.

Buzzer
Yes
Display
No
Color
Black
IK class (Impact protection)
10
IP class
67
Cable connector
Pigtail
Cable length (cm)
300
Communication protocol
OSDP
Reading technology
Mifare
Power source
9-30V
Keypad
2x6 Touch
Touchscreen
No
Manufacturer
Idesco
