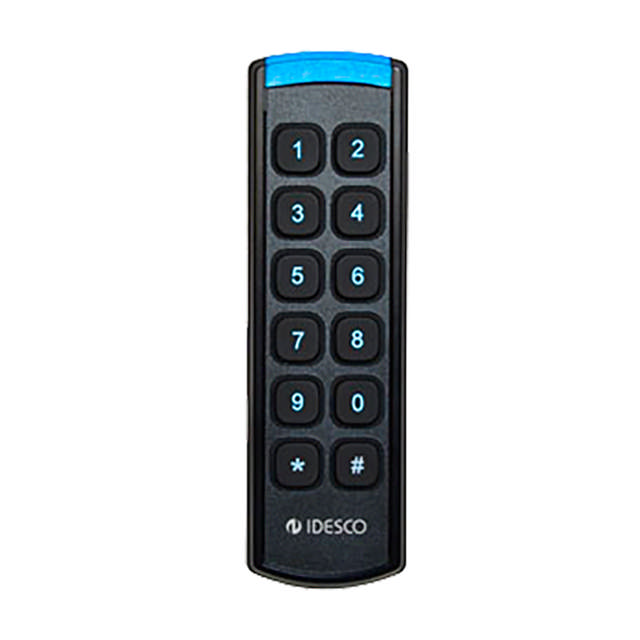

Idesco VS PIN - DESFire - OSDPv2 - 3m cable

Idesco VS card reader with keyboard.

OSDPv2 and pigtail cable (3m.) connection

• Operating Frequency: 13,56MHz
• Voltage: +10 .... +30 VDC
• Current Consumption: VM/VS: 45mA @ 24VDC, max 90mA
• RFID chip support: MIFARE® DESFire EV1 & EV2 & EV3: UID + Application files , MIFARE® Classic: UID + Sectors, MIFARE® Ultralight UID + Pages, MIFARE® Plus UID security levels 1 and 3, MIFARE® SmartMX (MIFARE® Classic emulation mode).
• Additional Security feature for DESfire: Support for DESFire EV1 & EV2 & EV3 Random UID
• UID selection: Reader can be configured to read either 4 or 7 Byte UIDs, or both.
• Keypad: 2 x 6 (mechanical)
• Dimensions of housing (hxwxd): W: 44,96 mm x H: 148,3 mm. Thickness: 25,3 mm + 10 mm (with connector)
• Material of housing: Plastic
• Colour: Black
• Customized versions: Yes, with sticker or lens
• Protection class IP67: with the pigtail cable option
• IK rating: IK-09
• Operational temperature range: -30 °C- +55 °C
• Storage temperature range: -30 °C- +55 °C
• I/O’s: 2 (1 General purpose input)
• Interfaces:OSDP v2
• EMC: Meets CE requirements
• Field strength: According to EN300330
• Encryption: AES or triple DES
• Connector: No
• Led: RGB
• Led control: By wire
• Buzzer: Yes (Buzzer modes can also be configured)
• Buzzer control: By wire
• Optical Tamper: Yes, configurable
• Re-read delay: Adjustable
• Configuration Only one DESfire EV1 / EV2 / EV3 conf card required
• Configure only after reset option
• Value file support: Reader can be set to credit / debit value from value file cards
