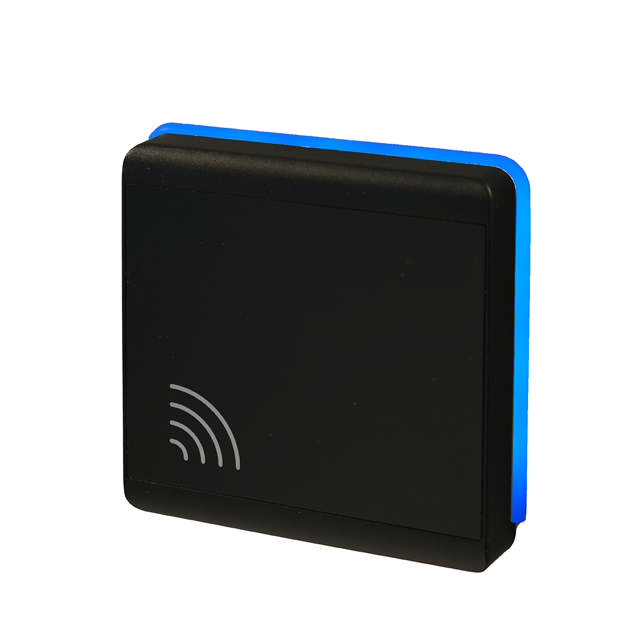

readID™ Wall E - Mifare Desfire - Black - Terminal
SE 1090 DT
Mifare DESFire card reader with EMV functionality
Delivered as standard in OSDP - can be configured for Wiegand
-
- MIFARE Classic® (UID / Sector)
- MIFARE Ultralight® (UID)
- MIFARE® DESFire EV1/EV2 (UID / Application-AES)
- EMV® Virtual card number
- Predefined formats or Custom Configuration
- Tamper monitoring
- Day light sensor
- Interface:
- Wiegand (requires configuration with USB Config Utility)
- Clock / Data (requires configuration with USB Config Utility)
- RS485 / OSDP (standard)
- Termination: Screw Terminal
Technical data
- Dimensions: 89 x 87 x 16 mm (L x W x H)
- Color: Black (RAL 9005) or White (RAL 9018)
- Connection: 10 way detachable connector or Fix mount screened cable (3m)
- Supply Voltage: 5 – 30 VDC / 50 mA
- Temperatur Range: -30 C -> +70 C
- IP Rating IP54 or IP65 with seal between reader and wall
- Commodity code: 8471.60.90.30
- Country of Origin: DK
- ECCN code (US): N
- Export list number (EU): N
- Certification: CE & UKCA
- Buzzer
- Yes
- Display
- No
- Color
- Black
- IP class
- 54
- Cable connector
- Terminal Connector
- Communication protocol
- Wiegand OSDP RS485
- Reading technology
- Mifare Desfire EMV® Virtual card number
- Power source
- 9-30V DC
- Keypad
- None
- Touchscreen
- No
