STID Architect - BLE-QR-DISPLAY - OSDP - Mifare

NOTE.
Requires NOX R9 for active display. The reader will work on NOX R8, but only with keyboard function on the display.

Display readers have clear advantages, but depending on the environment and intended use, also disadvantages. We recommend talking to ARAS before purchasing.

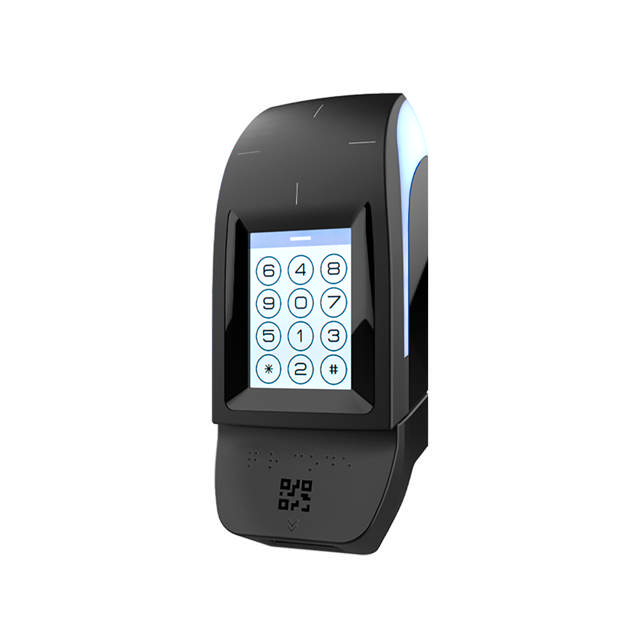

STid Architect card reader with touchscreen display, QR reader module and Bluetooth.

Patented accelerometer-based tamper technology.

Bluetooth and NFC Technology for smartphones.

5 different identification modes for smartphone access.

• Operating frequency / standards: 13.56 MHz. ISO14443 types A & B, ISO18092, Bluetooth
• Chip compatibility: MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1 & EV2, CPS3, NFC (HCE), PicoPass ® (CSN only), iCLASS ™ (CSN* only)
• Communication and protocols: TTL Data Clock (ISO2) or Wiegand (encrypted mode - S31) / RS232 / RS485 (encrypted mode - S33) with secure communication protocols SSCP & SSCP2; OSDP™ V1 (Normal Communication) & V2 (SCP Secure Communication)
• Touchscreen: Color touchscreen - 2.8" - 240 x 320 pixels
• Touchscreen keypad: 12 backlit keys - Standard or Scramble pad mode
• Touchscreen keypad functions: Short AND key / short OR key
• Touchscreen setup: Configuration with RFID, Bluetooth® using the STid Settings app, UHF technology, software and external command (0V)
• Reading distance: Up to 6 cm with a MIFARE® Classic card, Up to 4 cm with a MIFARE Plus® / DESFire® EV1 card - Up to 20 m with a Bluetooth® smartphone (adjustable distances on each reader)
• Read / Write: Read only - also available as read/write (ask ARAS)
• Light indicator: 2 RGB LEDs - 360 colors, Configuration with RFID, Bluetooth® using the STid Settings app, UHF technology, software and external command (0V)
• Audio indicator: Internal buzzer with adjustable intensity, Configuration with RFID, Bluetooth® using the STid Settings app, UHF technology, software and external command (0V)
• Current requirement / power supply: 220 mA / 12 VDC Max / 7 VDC to 28 VDC
• Connection: 10-pin plug-in connector (5 mm) / 2-pin plug-in connector (5 mm): O/C contact - Tamper detection signal
• Data protection: EAL5 + Secure data storage with certified crypto processor
• Material: ABS-PC UL-V0 (black)
• Dimensions (h x w x d): 128 x 80 x 31 mm
• Operating temperatures: -20 ° C to + 70 ° C / Humidity: 0-95%
• Tamper: Accelerometer-based tamper detection system with key deletion option (patented solution) and / or message to the controller
• Protection / durability: IP65 excl. connector - Weatherproof with waterproof electronics
• Mounting: Compatible with all surfaces and metal walls without spacer - Wall mounting / Recessed: - European 60 & 62 mm
• Certifications: CE & FCC

Mobile ID:

• Badge mode
• Slide mode
• Tap tap mode
• Hands-free mode
• Remote mode



The reader is delivered as a standard reader. The reader can be modified and configured completely according to the end user's wishes, but you must expect an additional price for modifications, configuration and installation of special software if you do not want to use it with the standard configuration.

Mounting height:
Display readers require a higher mounting height to make functional sense. ARAS recommends a height of at least 160 cm, or the use of angled mounting accessories.
