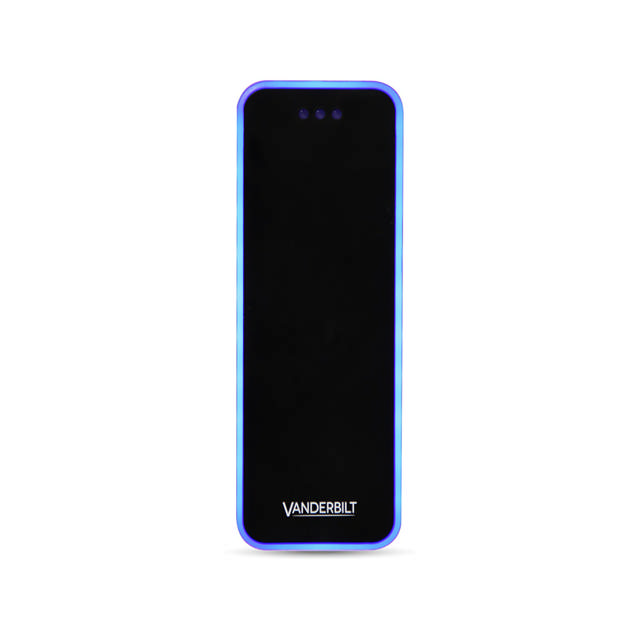

VR20 - Mifare/Desfire EV1 card reader - without keypad

OSDP card reader without keypad

Reads Mifare Classic, Plus and DESfire EV1

With 3 LED indicators, and a multi-tone buzzer.

A multi-colored light frame provides easy-to-read access status information (configurable).

NOTE.

This reader is specially configured for the NOX system

Technical data:

• System compatibility: NOX systems
• Interface to Controller: RS485
• Card technology: Mifare Classic, Mifare Plus and Mifare DESFire EV1.
• Reading distance: Up to 6 cm.
• Indicators: 3x LED (red / yellow / green), 1x multi-tone buzzer
• Multi-colored light frame
• For both indoor and outdoor use.
• IP66 (surface mounted)
• Material: Zinc die-cast metal with polycarbonate plastic front.
• Color: Black, matt chrome.
• Dimensions (W x H x D): 50 x 130 x 22 mm.
• Weight: 294 g.
• Tamper protection: Yes.
• Operating voltage: 8.5 to 30.0 VDC.
• Operating temperature: -40° C to + 70° C (surface mounted)
• Current consumption: DC 12V 50mA Peak 150mA.

The reader is delivered as a standard reader.
The reader can be modified and configured completely according to the end user's wishes, but an additional cost for modifications, configuration and installation of special software must be expected if you do not want to use it with the standard configuration.
