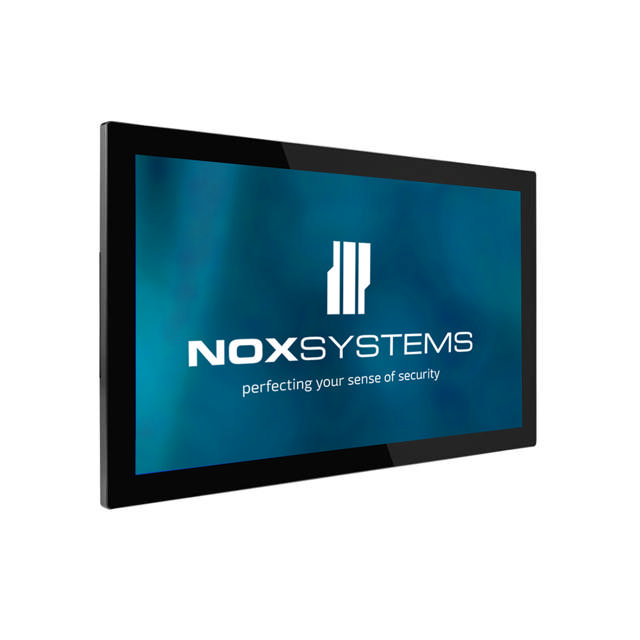

Touch Tablet 22" LED incl. IoT license

This modern 22 inch panel PC is suitable for wall mounting and 24/7 use.

Very suitable for equipping with NOX TPA software for displaying maps, area status, alarms and overall operation of a NOX system.

Unfortunately, flush-mounted installation is not possible for this variant, instead the 10 inch variant can be built in.

NOTE.

• Requires TPA license to work with NOX
• If this is to be used as a replacement for our old 19" TPA, some changes to images and shortcuts are required. This is because the old TPA had a 4:3 format (1280 x 1024px), while this one has a 16:9 format (1920 x 1080px).

Panel

• Panel type: TFT LCD IPS
• Resolution: 1920 x 1080
• Aspect ratio: 16:9 wide
• Backlight: Edge-LED backlight
• Brightness: 250 cd/m2
• Viewing angle: H 178° / V 178°
• Contrast ratio: 3000 : 1
• Touch Type: 10 point touch projected capacitive
• Convenience: Landscape, Portrait, Table Mode
• Gyro: N/A
• Operation hours: 24/7

System

• Chipset: HD505
• CPU: Intel Pentium N4200 1.1 GHz
• GPU: Intel HD 505 Graphics
• Cooling: Fanless
• System memory: 4GB DDR3L
• Video out: mini ​​HDMI
• Internal storage: SSD 64GB M.2 2242
• Storage socket: 2 SD-Card Slot (door)
• OS: Windows 10
• Additional Windows license required: Yes, at a cost
• LED Light Bar: N/A
• I/O Ports: 12 V DC-IN, 2x COM (RJ45), Ethernet (RJ45), Micro-USB, S/PDIF, mini-hdmi-out, Combo Jack, 2x USB 3.0
• Network LAN: RJ45 10/100/1000Mbps LAN
• WiFi: 802.11 a/b/g/n/ac
• Bluetooth: BT 4.2
• Power over Ethernet (PoE): N/A
• Integrated NFC: Optional accessory
• Camera: Optional accessories

Video/Audio

• Microphone: N/A
• Speakers: 2 x 3W
• Audio Jack Output 3.5mm: YES

Physical

• Housing: Plastic
• Color: Black
• Weight: 4200g
• Dimensions: 530.5 x 321.22 x 35mm
• Mounting / VESA: VESA 100
• Power Supply: 12 V / 5 A
• Power Supply Included: Yes
• Power Usage: 40 ~ 70 Watts
• Pogo Pins: YES (bottom/left/right)

Other

• OSD Language: Multi OSD language
• Clock Battery (for RTC): CR2032 - Lithium‐metal non‐rechargeable coin
• Storage Temp: ‐10 ~ 55 degrees C
• Working Temp: 0 ~ 40 degrees C
• Storage/Working Humidity: 10 ~ 90% non-condensing
• MTBF: 50,000 hours demonstrated
• Standard Warranty: 3 years
• Certifications: FCC, CE, RoHS
