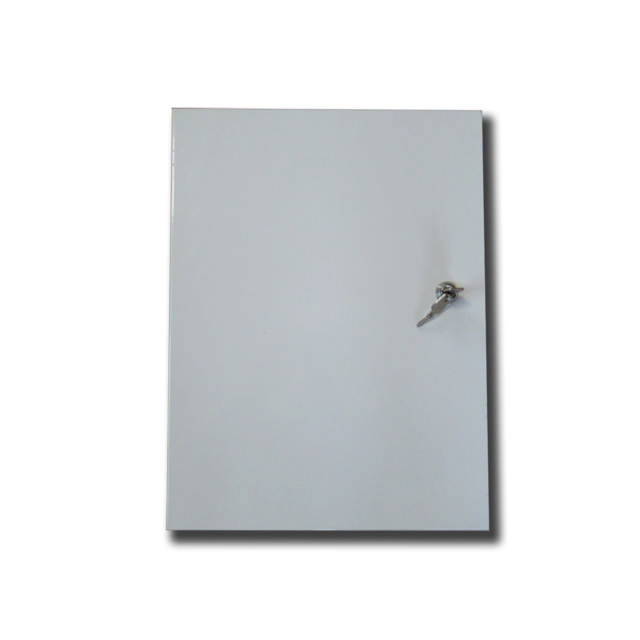

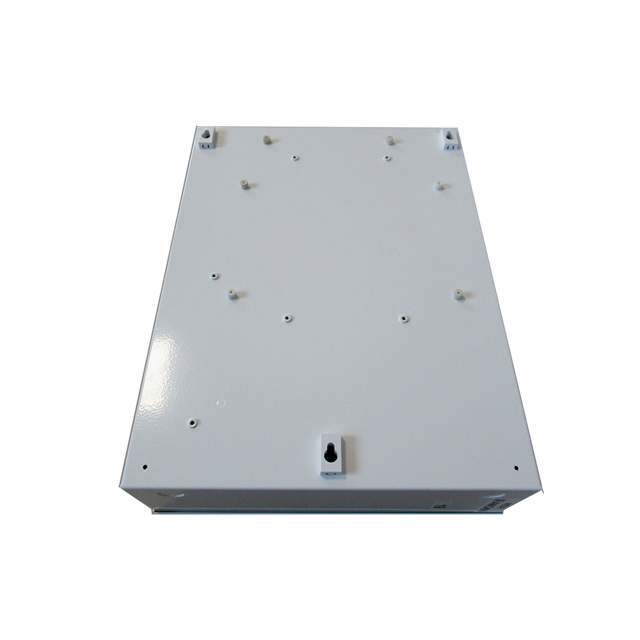

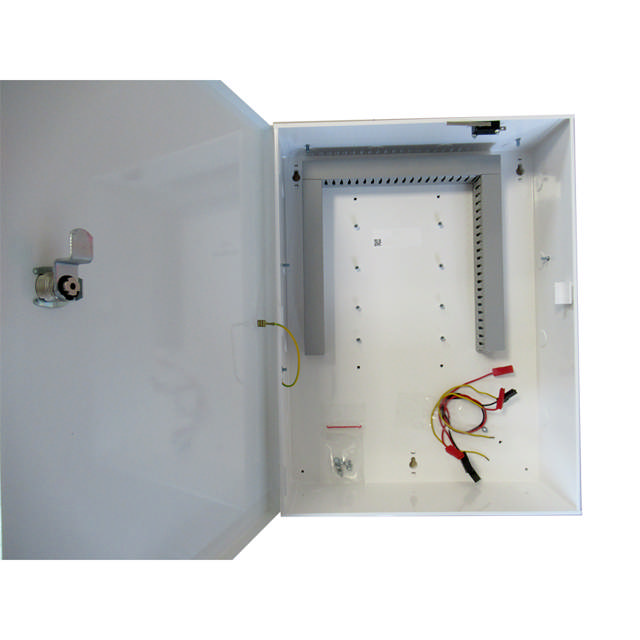

AXIOM cabinet without content - for CCTV
AXIOM-BOX
AXIOM cabinet without content - for cctv
-
- Cabinet dimensions: 330 × 443 × 108 (335 × 448 × 108 + 8) (W × H × D) [mm] (+/- 2)
- Fixing: According to drawing
- Battery capacity: 7 Ah
- Net/gross weight: 5.8 / 6.3 kg
- Cabinet color: RAL 9003
- Closing: 2 cheese screws in front (lock can be installed)
- Connections – power supply: Ø 0.41–2.5
- Outputs: Ø 0.41–2.5
- Battery outputs (BAT): Connections Ø 6 (M6-0-2.5)
- TAMPER output: Cables, 300 mm
- Remarks: The cabinet is mounted with a distance from the mounting surface so that cables can be routed behind. Cooling is by natural convection.
